Zodiac Dx4000

Duo-X™ DX4000

• Duo-X™ offers integrated agility with a compact body intelligent cleaner
• Dual-stage filtration with 150µ/60µ filter canisters
• Patented Helix shaped brush picks up all types of debris
• Patented Cyclonic Suction technology

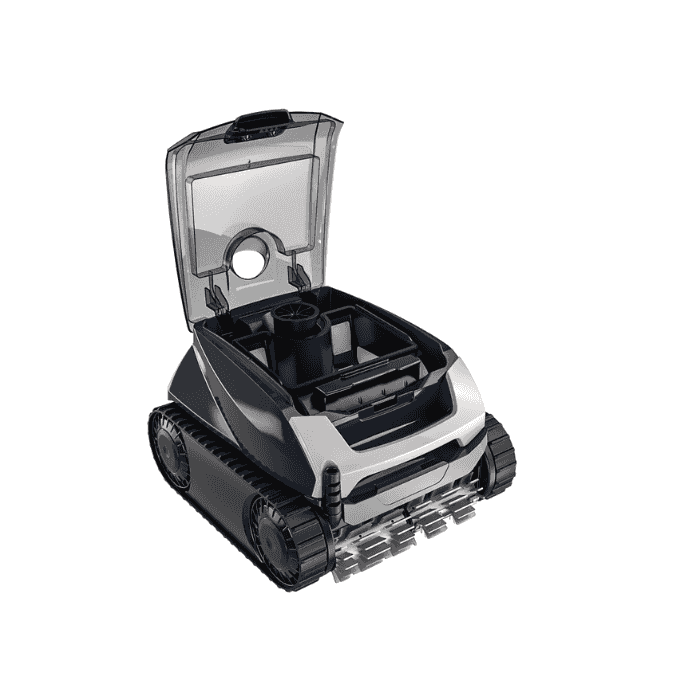

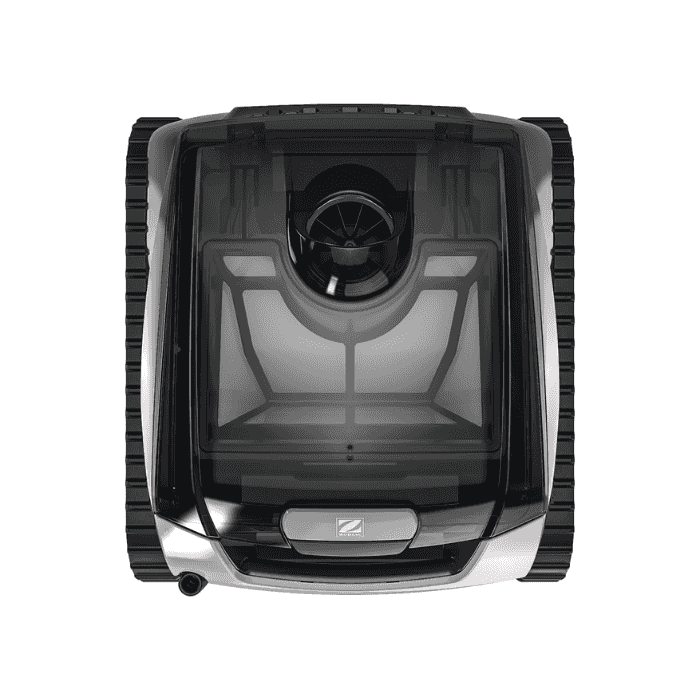

• Transparent canister window with LED illumination
• Patented Lift System™ makes for easy pool removal
• Climate Care Certified by SPASA Australia

COMBINED INTEGRATED AGILITY WITH INTELLIGENCE
With new patented Helix shaped brush and compact body, the new Duo-X™ offers integrated agility. Featuring dual stage filtration (150μ/60μ) that is capable of picking up small and large debris, the Duo-X™ is designed to run in all types of pools. With the patented Lift System™ and unique design, the Duo-X™ is capable of expelling water very quickly making it very easy to operate and remove from the water. DX4000 has superior wall detection without the need for tilting making it very efficient in covering the pool.

INTEGRATED AGILITY

With its embedded smart sensors and its unique design, Duo-X™ DX4000 offers excellent coverage of the pool and limitless agility. It is, therefore, ideal for all pool shapes and linings.

DUAL STAGE FILTRATION (150μ/60μ)

Capture large and small debris with great efficiency. The dual filters ensure all debris is picked up no matter how large or how small, keeping your pool clean. The 150μ filter can also be used on its own.

PATENTED CYCLONIC SUCTION

Duo-X™ features patented cyclonic suction that is powerful and long-lasting. Debris is kept in suspension to avoid filter clogging and to maintain the same level of cleaning performance throughout the cycle.

PATENTED LIFT SYSTEM™

The Duo-X™ robotic cleaner positions itself on the chosen wall and climbs right up to the water line. Once the robot is removed from the water, it expels water very quickly making is lightweight and effortless. This means that you can remove the robot from the water with 15% less effort.

SWIVEL

Reduce the chances of cable tangling. Automatic swivel system prevents cable tangling during cleaner operation in the pool. The cleaner efficiency is optimized and the cable storage is easier. All Duo-X™ robotic pool cleaners are equipped with a swivel.

Model No.: Duo-X™ DX4000
Equipment: Pool surfaces Concrete, pebblecrete, quartzon, fibreglass, vinyl and tiles.
Cleaner weight: 9.5kg
Pool shapes: Rectangular, oval, free shape, flat, gentle slope, composite slope, diamond shape
Pool sizes: Up to 10m x 5m (15m cable)
Cleaning areas: Floors, walls and waterline
Filter capacity: 4L
Number of motors: 3
Control box: supply 200-240 VAC / 50Hz / 60Hz
Power supply / operating power: 30V DC / 150W
Cleaner dimensions: 43 cm x 48 cm x 27 cm (L x W x H)
Filtration level: Dual stage filtration with 150μ/60μ filter canister
Packaging gross: weight 19kg
